Construction time£º2017            Completion time£º2019            Project area£º43,627 ©O            Volume of steel£º9,000t

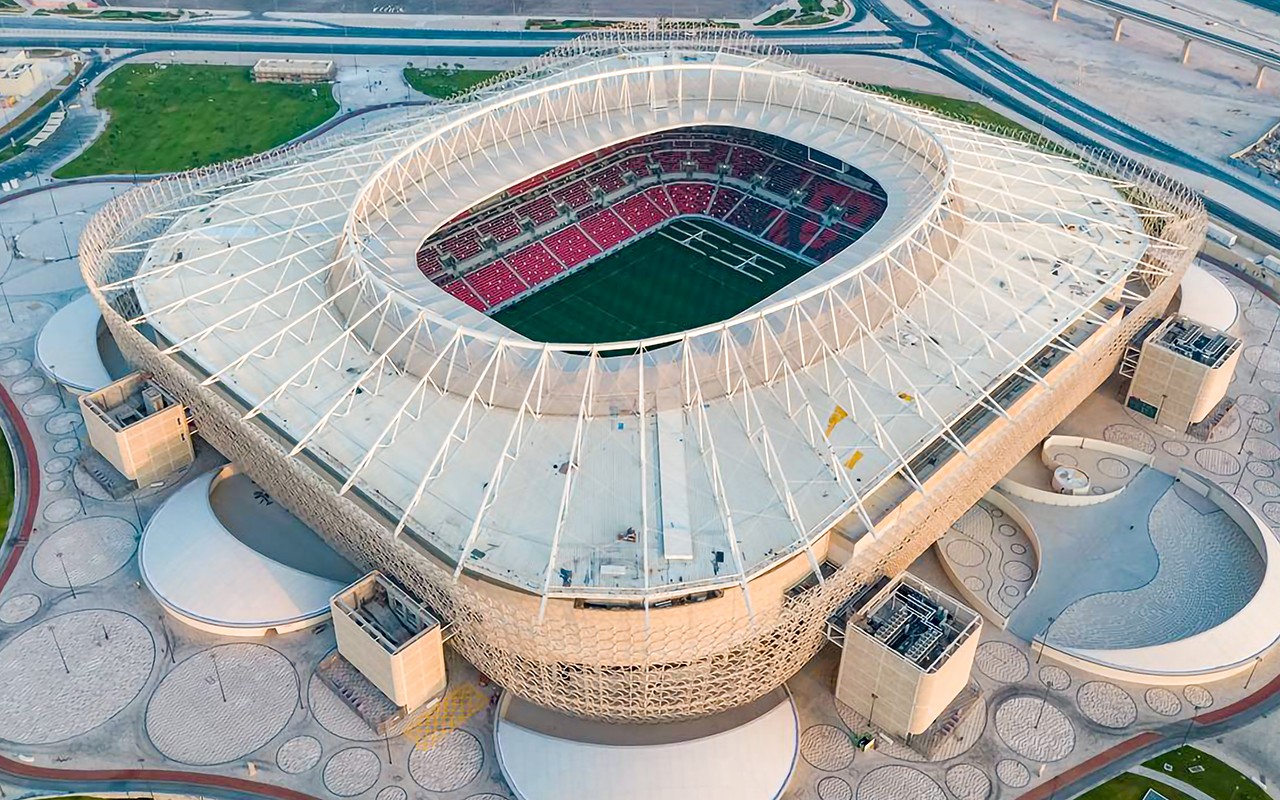

Project description£ºThe Al-Rayyan Stadium is one of the venues which will be delivered by the Supreme Committee for the Qatar World Cup 2022. The stadium is located in Al-Rayyan City. JGS will be responsible for shop design, fabrication, transportation, supply and erection of stadium¡¯s steel work. The whole building consists of three parts, facade, bowl and canopy. The canopy is a ridge valley system. The plan shape of canopy is a cutaway rectangle, and canopy are supported by 48 columns of hot-formed circular hollow section which is above concrete building. The bowl has 6 floors: two basement floors underground and 4 bleacher floors above ground. The elevation of B2 is -8.240 m. The elevation of ground floor is ¡À0.000 m, and the elevation of pitch is about -7.05 m. The plane dimension of cutaway rectangle canopy is 227.690 m x 191.537 m, the dimension of open space in canopy is124.984 m x 84.994 m. The elevation of inner edge of canopy is 37.243 m, the elevation of outer edge is +26.500 m. The top elevation of canopy is 43.000 m.

Bright spot£ºBS EN, AESS
